CT Series – CT LT(Fast/Hot)/1M/2M/3M/G5/P3/P7

■ 德國Optris CT系列全球最小的紅外線測溫探頭，適合節省空間的環境安裝

■ 堅固耐用不銹鋼測溫探頭及電纜可耐高溫達180°C的惡劣工業環境應用

■ 寬廣的測溫範圍 -50°C ~ 2200°C (switchable)

■ 光學解析最高達 D : S = 75 : 1

■ 反應時間最快速 6 mSec (LT) / 1mSec (HT)

■ 特定的測溫頻譜 8 ~ 14 μm(LT) / 2 . 3 μm(3M) / 1 . 6 μm(2M) / 1 μm(1M)

■ 類比訊號 0/4 ~ 20mA、0 ~ 10V、K或J型熱電偶輸出

■ 數位訊號 USB / RS232 / RS485(可串接32組) 等通訊介面 (選配)

■ 分離式I / O控制盒，具智慧LCD背光顯示

• optris CT LT / CTex LT
• optris CTfast LT
• optris CThot LT
• optris CT 1M / 2M
• optris CT 3M
• optris CT G5
• NEW: optris CT P3
• optris CT P7

Technical Details of the optris CT LT/ CTex LT

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCTLT02 : -50 to 600 °C (-58 °F to 1112 °F) / 8-14 μm / 2:1 / 130°C (266 °F) / 1 m (3.3 ft) cable
• OPTCTLT15 : -50 to 600 °C (-58 °F to 1112 °F) / 8-14 μm / 15:1 / 180°C (356 °F) / 1 m (3.3 ft) cable
• OPTCTLT15CF : -50 to 600 °C (-58 °F to 1112 °F) / 8-14 μm / 15:1 / 180°C (356 °F) / 1 m (3.3 ft) cable;
  with CF optics: 3 mm @ 50 mm (0.12 in @ 1.97 in) (head length: 32 mm [1.26 in])
• OPTCTLT20 : -50 to 975 °C (-58 °F to 1787 °F) / 8-14 μm / 22:1 / 180°C (356 °F) / 1 m (3.3 ft) cable
• OPTCTLT20CF : -50 to 975 °C (-58 °F to 1787 °F) / 8-14 μm / 22:1 / 180°C (356 °F) / 1 m (3.3 ft) cable;
  with CF optics: 2.5 mm @ 50 mm (0.10 in @ 1.97 in) (head length: 32 mm [1.26 in])

Technical Details of the optris CTfast LT

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length / response time

• OPTCTLT15F : -50 to 975°C (-58 to 1781 °F) / 8-14 μm / 15:1 / 120°C (248 °F) / 1 m (3.3 ft) cable / 9 ms
• OPTCTLT25F : -50 to 975°C (-58 to 1781 °F) / 8-14 μm / 25:1 / 120°C (248 °F) / 1 m (3.3 ft) cable / 6 ms

Technical Details of the optris CThot LT

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length / response time

• OPTCTLT02H : -40 to 975°C (-40 to 1787 °F) / 8-14 μm / 2:1 SF / 250 °C (482 °F) / 3 m (9.8 ft) high temperature cable
• OPTCTLT10H : -40 to 975°C (-40 to 1787 °F) / 8-14 μm / 10:1 SF / 250 °C (482 °F) / 3 m (9.8 ft) high temperature cable

Technical Details of the optris CT 1M / 2M

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCT1ML : 485 to 1050 °C (905 to 1929 °F) / 1.0 μm / 40:1 / 100°C (212 °F) / 3 m (9.8 ft) cable
• OPTCT2ML : 250 to 800 °C (482 to 1472 °F) / 1.6 μm / 40:1 / 125°C (257 °F) / 3 m (9.8 ft) cable
• OPTCT1MH : 650 to 1800 °C (1202 to 3271 °F) / 1.0 μm / 75:1 / 100°C (212 °F) / 3 m (9.8 ft) cable
• OPTCT1MH1 : 800 to 2200 °C (1472 to 3992 °F) / 1.0 μm / 75:1 / 100°C (212 °F) / 3 m (9.8 ft) cable
• OPTCT2MH : 385 to 1600 °C (725 to 2912 °F) / 1.6 μm / 75:1 / 125°C (257 °F) / 3 m (9.8 ft) cable
• OPTCT2MH1 : 490 to 2000 °C (914 to 3632 °F) / 1.6 μm / 75:1 / 125°C (257 °F) / 3 m (9.8 ft) cable

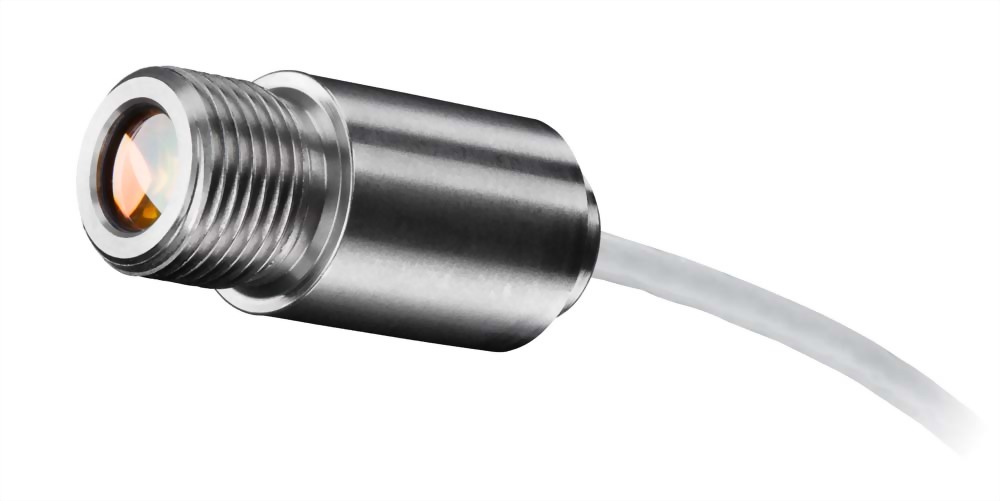

Technical Details of the optris CT 3M

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCT3ML : 50 to 400°C (122 to 752 °F) / 2.3 μm / 22:1 / 85°C (185 °F) / 3 m (9.8 ft) cable
• OPTCT3MH : 100 to 600°C (212 to 1112 °F) / 2.3 μm / 33:1 / 85°C (185 °F) / 3 m (9.8 ft) cable
• OPTCT3MH1 : 150 to 1000°C (302 to 1832 °F) / 2.3 μm / 75:1 / 85°C (185 °F) / 3 m (9.8 ft) cable
• OPTCT3MH2 : 200 to 1500°C (392 to 2732 °F) / 2.3 μm / 75:1 / 85°C (185 °F) / 3 m (9.8 ft) cable
• OPTCT3MH3 : 250 to 1800°C (482 to 3272 °F) / 2.3 μm / 75:1 / 85°C (185 °F) / 3 m (9.8 ft) cable

Technical Details of the optris CT G5

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCTG5L10 : 100 to 1200 °C (212 to 2192 °F) / 5 μm / 10:1 SF / 85°C (185 °F) / 3 m (9.8 ft) cable
• OPTCTG5H20 : 250 to 1650 °C (482 to 3002 °F) / 5 μm / 20:1 SF / 85°C (185 °F) / 3 m (9.8 ft) cable

Technical Details of the optris CT P3

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCTP315 : 50 to 400 °C (122 to 752 °F) / 3.43 μm / 15:1 / 75°C (167 °F) / 3 m (9.8 ft) cable

Technical Details of the optris CT P7

Part number: temperature range / spectral range / optics / max. ambient temperature / cable length

• OPTCTP710 : 0 to 710 °C (32 to 1310 °F) / 7.9 μm / 10:1 / 85 °C (185 °F) / 3 m (9.8 ft) cable

Application examples for non-contact temperature measurement

The process and product temperature is an important physical indicator for manufacturing processes and ensures a high quality level of the production line.

All Optris products apply in different areas, covering the non-contact temperature measurement. This covers the plastic industry, the food industry as well as the solar industry and life science.

Temperature measurement and 3D laser scanning

3D laser scanners and infrared cameras combined offer crucial information about surface structures as well as temperatures. In the construction and restauration sector, thermal insulation and thermal conduction are optimized by the measurement of surface temperatures, helping to reduce energy costs significantly.

Temperature measurement in automotive industry

The automotive industry covers many manufacturing steps in which different materials are processed.
The processes can be monitored and optimized by infrared thermometers and infrared cameras to ensure an efficient quality of the products.





Examples: Control of components within test stations; laminating of car interiors: error displays at vehicles

Temperature measurement for fire prevention

Consequence of fires in industrial plants are not only severe material damages, but also production losses. Most of the times, fires are preceded by a significant build-up in heat, which can be detected by monitoring the plant with infrared cameras and infrared thermometers, thus preventing a possible breakout effectively.

Temperature measurement in plastics industry

The production process of plastic products is as versatile as the plastics itself.
We will only name the most common processes as there are different demands regarding the temperature measurement.





Examples: thermoforming of foil; surface refinement at the embossing calendar; production of PET bottles

Temperature measurement in life science / medical

Different processes within the medical area can be monitored and optimized through the use of non-contact temperature measurement.
Our products are used by producers of medical products but also by health professionals for fast diagnosis.



Examples: Monitoring of cryogenics; production of glass shots; manufacturing of dental products

Temperature measurement in solar / semiconductors industry

A continuous process control and optimization within the semiconductor industry is of great importance.
This can be carried out through the temperature steering via an infrared thermometer or the quality securing via infrared cameras.



Examples: string brazing of solar modules; quality control of solar modules; test stations of conductor boards

Temperature measurement in metal industry

Non-contact measuring sensors are an important part of metal production and processing.
Through the use of measurement devices, a high quality of products can be achieved as well as a reduction in the process costs through specific process optimization.



Examples: Inductive curing and striking; contraction process; measurement of casting temperature

Temperature measurement in glass industry

Especially the glass industry depends on temperature control due to its energy complex manufacturing steps.
By monitoring the temperature of the products and the equipment, highest quality can be assures to stand ones ground on the market.



Examples: Monitoring of glass melting bowls; Production of container glass; manufacturing of flat glass

Temperature measurement in maintenance

The preventive maintenance is gaining more and more importance.
Whether the monitoring of electrical and mechanical facilities or within air conditioning, infrared thermometers and cameras can be of help to detect weak points or defects.
Expensive deadlocks can therefore be avoided.


Examples: Electrical and mechanical maintenance; permanent monitoring with fixed IR thermometers
